Aten VS481A 4 x 1 HDMI switch with Remote Control
Aten VS481A 4 x 1 HDMI switch with Remote Control
Regular price
£29.99 GBP
Regular price
Sale price
£29.99 GBP
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
LED indication of video source devices
Supports 12-bit Deep Color for HDMI formats
Supports HDMI Type A 19-pin female connector
Plug-and-play - no software installation required
Supports Dolby True HD and DTS HD Master Audio
The VS481A 4 Port HDMI Switch allows you to quickly and easily share your HDMI display device with 4 HDMI input sources. The VS481A allows convenient switching between digital devices such as DVD players, Satelite receivers, Digital Camcorder. The VS481A allows you to select the desired input source via a remote control unit and pushbuttons located on the switch.
Package Contents
1x HDMI Switch
1x HDMI Cable (1.8m/6ft)

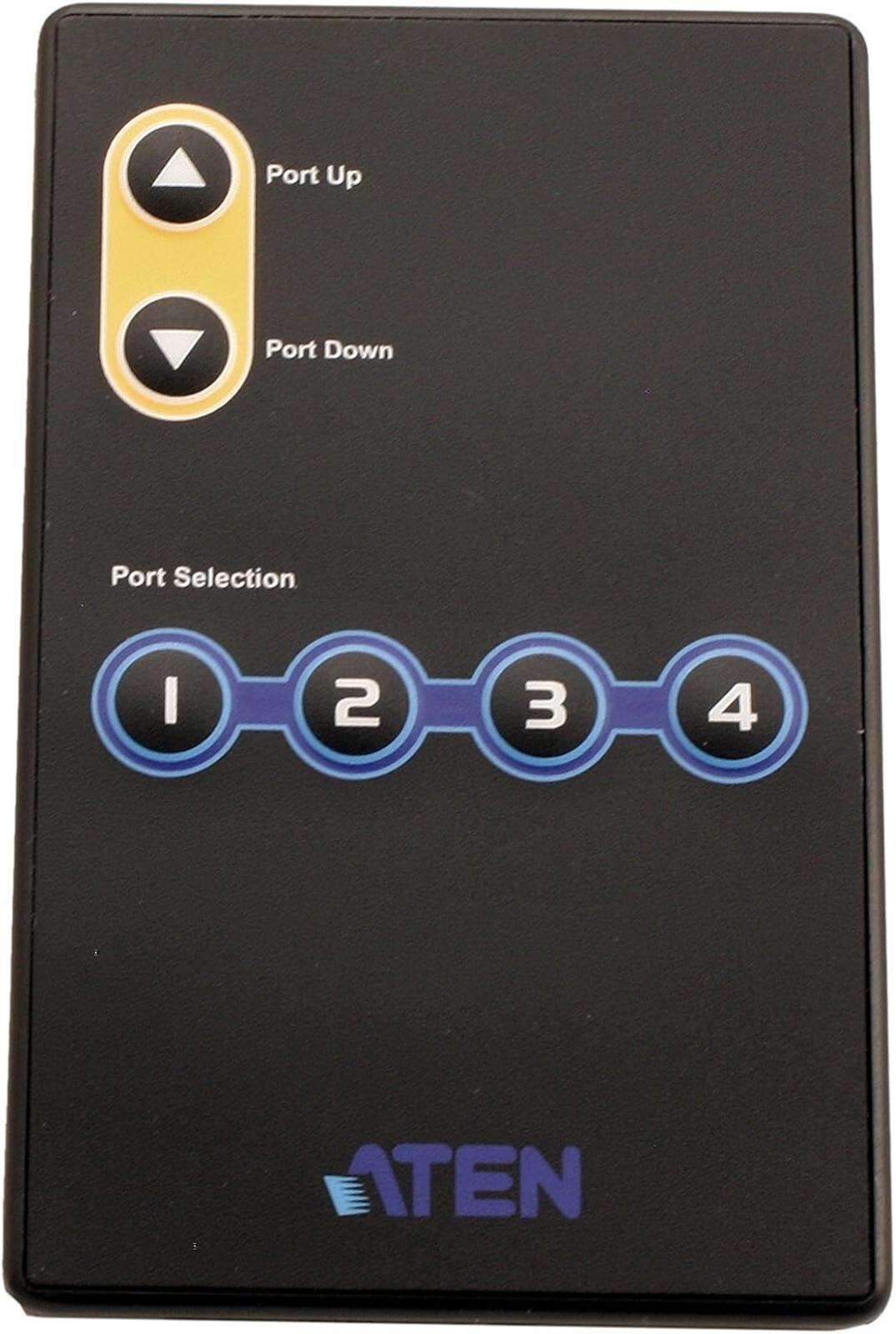

1x IR Remote Control Unit
1x Power Adapter
1x User Instructions

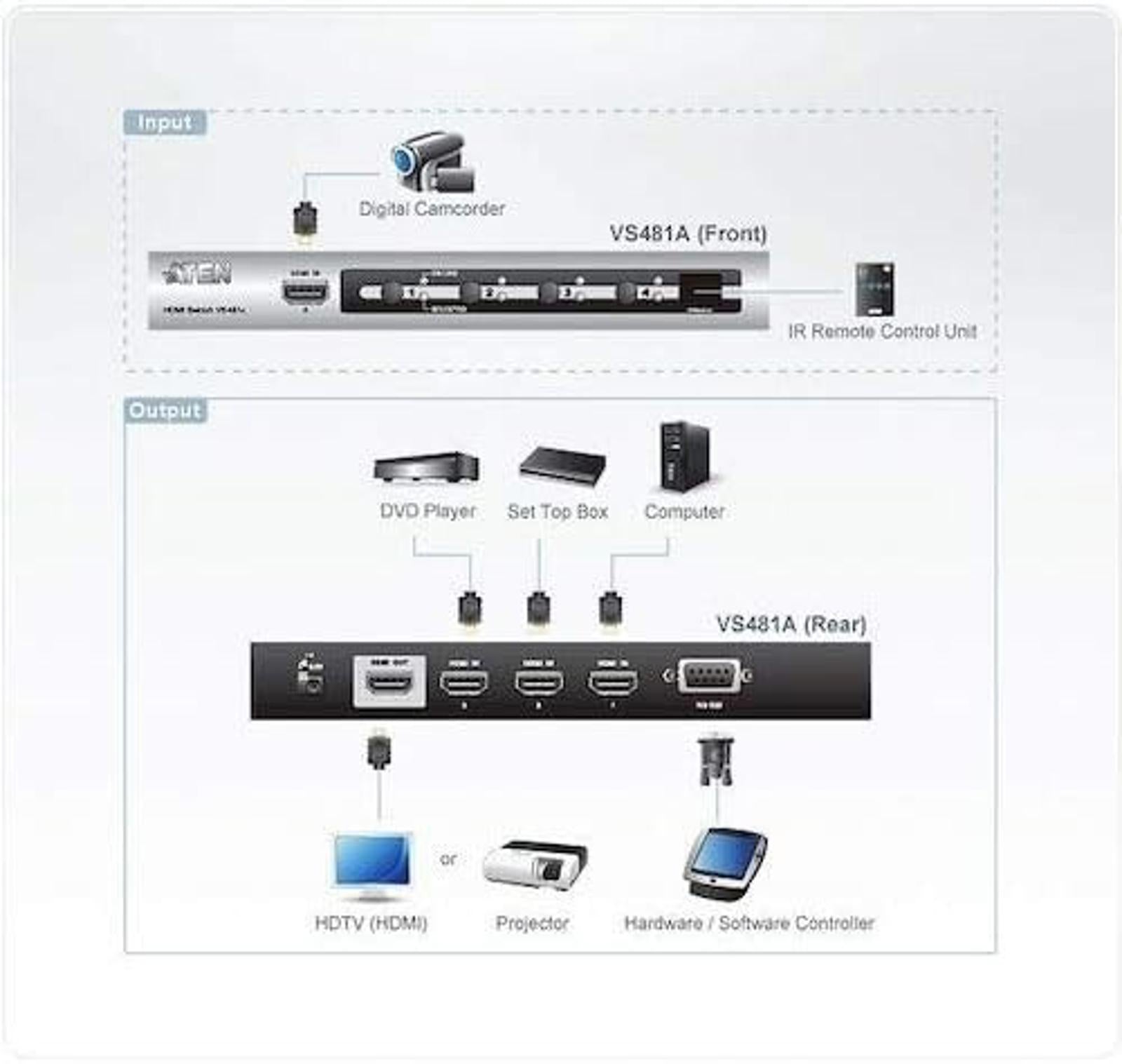

Allows up to four HDMI A/V source to be connected to one HDMI display
Toggle between A/V sources using remote control or front panel pushbuttons
Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200) and WUXGA(1920x1200)
HDMI (3D, Deep Colour)
Supports Dolby True HD and DTS HD Master Audio
Up to 60 Hz refresh rate
Long distance transmission - up to 15m (24 AWG)
Built-in bi-directional RS-232 serial remote port for high-end system control
Power On Detection – if one of the HDMI source devices is powered off, the VS481A will automatically switch to the next powered on device
Plug-and-play - no software installation required
DDC Compatible
HDCP 1.4 compliant
Signalling rates up to 2.25 Gbps in support of 1080p display
All-metal casing
LED indication of video source devices
Easy and affordable way to add four HDMI inputs to your home theatre system
Video InputInterfaces4 x HDMI Type A Female (Black)Impedance100 ΩMax. Distance3m @1920x1080@60 (4:4:4)Video OutputInterfaces1 x HDMI Type A Female (Black)Impedance100 ΩMax. Distance15m @1920x1080@60 (4:4:4)VideoMax. Data Rate6.75 Gbps (2.25 Gbps Per Lane)Max. Pixel Clock225 MHzComplianceHDMI (3D, Deep Color)HDCP CompatibleConsumer Electronics Control (CEC)Max. ResolutionUp to 1080pControlRS-232Connector: 1 x DB-9 Female (Black)Baud Rate and Protocol:Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: NoConnectorsPower1 x DC JackPower ConsumptionDC5.3V:1.87W:9BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.EnvironmentalOperating Temperature0 - 50°CStorage Temperature-20 - 60°CHumidity0 - 80% RH, Non-CondensingPhysical PropertiesHousingMetalWeight0.47 kg ( 1.04 lb )Dimensions (L x W x H)20.00 x 8.27 x 2.50 cm(7.87 x 3.26 x 0.98 in.)Carton Lot10 pcsNoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Supports 12-bit Deep Color for HDMI formats
Supports HDMI Type A 19-pin female connector
Plug-and-play - no software installation required
Supports Dolby True HD and DTS HD Master Audio
The VS481A 4 Port HDMI Switch allows you to quickly and easily share your HDMI display device with 4 HDMI input sources. The VS481A allows convenient switching between digital devices such as DVD players, Satelite receivers, Digital Camcorder. The VS481A allows you to select the desired input source via a remote control unit and pushbuttons located on the switch.
Package Contents
1x HDMI Switch
1x HDMI Cable (1.8m/6ft)
1x IR Remote Control Unit
1x Power Adapter
1x User Instructions
Allows up to four HDMI A/V source to be connected to one HDMI display
Toggle between A/V sources using remote control or front panel pushbuttons
Superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200) and WUXGA(1920x1200)
HDMI (3D, Deep Colour)
Supports Dolby True HD and DTS HD Master Audio
Up to 60 Hz refresh rate
Long distance transmission - up to 15m (24 AWG)
Built-in bi-directional RS-232 serial remote port for high-end system control
Power On Detection – if one of the HDMI source devices is powered off, the VS481A will automatically switch to the next powered on device
Plug-and-play - no software installation required
DDC Compatible
HDCP 1.4 compliant
Signalling rates up to 2.25 Gbps in support of 1080p display
All-metal casing
LED indication of video source devices
Easy and affordable way to add four HDMI inputs to your home theatre system
Video InputInterfaces4 x HDMI Type A Female (Black)Impedance100 ΩMax. Distance3m @1920x1080@60 (4:4:4)Video OutputInterfaces1 x HDMI Type A Female (Black)Impedance100 ΩMax. Distance15m @1920x1080@60 (4:4:4)VideoMax. Data Rate6.75 Gbps (2.25 Gbps Per Lane)Max. Pixel Clock225 MHzComplianceHDMI (3D, Deep Color)HDCP CompatibleConsumer Electronics Control (CEC)Max. ResolutionUp to 1080pControlRS-232Connector: 1 x DB-9 Female (Black)Baud Rate and Protocol:Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: NoConnectorsPower1 x DC JackPower ConsumptionDC5.3V:1.87W:9BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.EnvironmentalOperating Temperature0 - 50°CStorage Temperature-20 - 60°CHumidity0 - 80% RH, Non-CondensingPhysical PropertiesHousingMetalWeight0.47 kg ( 1.04 lb )Dimensions (L x W x H)20.00 x 8.27 x 2.50 cm(7.87 x 3.26 x 0.98 in.)Carton Lot10 pcsNoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
